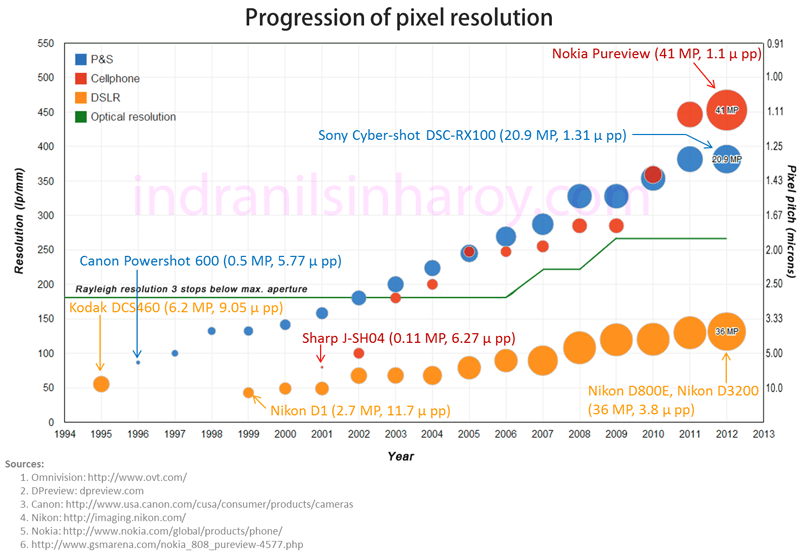

Thanks to the megapixel war, pixels in digital sensors have shrunk considerably over the years. Consequently, the pixel resolution (number of pixels in a digital image) has improved. Currently, the pixel resolution (assuming gray-scale sensor) can compete with the aerial resolution of lenses —on paper. This post is about a plot I created sometime back (for a different presentation) which shows the growth of pixel count and the diminishing of pixel size over the years for three popular segments of digital cameras. The green line plots the diffraction-limited (aberration free) optical resolution 3 stops below the maximum aperture available for off-the-shelf lenses during the same period. The optical resolution line doesn’t mean much; however, it is plotted to compare the sensor resolution with the optical resolution over time. The graph shows that while the sensor resolution has improved by leaps and bounds, the optical resolution hasn’t. It is no surprise though, because the optical resolution, which is limited by the fundamental nature of light —diffraction. Improving the optical resolution by traditional means is very expensive, and results in bulky lenses. The time is just right for exploring computational methods for improving the system resolution of imaging systems.
Other interesting data-points in the graphs are:
1. The Kodak DSC460, based on a Nikon SLR, was one of the first digital cameras.
2. The Sharp J-SH04 was the cellphone with a camera.
The number of mega-pixels and the pixel resolution (decrease in pixel size) has increased rapidly for the cellphone and point-and-shoot cameras, probably driven by marketing rather than by picture quality. In the more professional segment, clearly the strategy has been different. This may be because of two main reasons — one, the image quality dictated by noise, color reproduction, low-light performance, etc are more important for these shooters, and two, building high-quality large lens is relatively more expensive.
Summary: Most cellphone cameras today come with “large aperture” lens such as F/2.0 or F/2.2. Since the optical resolution of a “perfect” lens (a lens devoid of any aberration) is inversely proportional to the F/# (the relation is shown in equation 1), one may assume that a F/2.0 cellphone camera lens should be able to resolve fine details on an object as well as a F/2.0 DSLR lens.
The above image shows two lenses of same F/#, and also of equal normalized focal length. The one on the left is a lens whose 35 mm focal length is about 28 mm (with complete camera module, including the image sensor) from a cellphone, and the lens on the right is a 28 mm DSLR lens.
The optical resolution of a lens determines how close two line-objects or point-objects be placed before the objects cannot be distinguished from each other when viewing through the lens. The minimum resolvable separation, , is the inverse of . The larger the value of (usually measured in line-pairs-per-mm), the better is the resolving ability of the lens. So if the f-number, , of a cellphone lens matches the of a DSLR lens, then the equation (1) seems to suggest that they have the same optical resolution! However, as it is shown in the following paragraphs, the ability to resolve fine details of a F/2.0 DSLR lens is in fact much better than a F/2.0 cellphone camera lens. Concretely, if the focal length and the aperture diameter of the cellphone lens is 1/k (k>1) times the respective parameters of the DSLR lens, then the of the two systems are equal but the resolving ability of the cellphone lens is times that of the DSLR lens. For example, a 50 mm, F/2.0 lens (D = 25 mm), which is a first order approximation of a 50 mm DSLR lens, can resolve details as fine as 54 microns focused at a distance of 2 meters. Whereas a 5 mm, F/2.0 lens (D = 2.5 mm), a close approximation of a typical cellphone camera lens, can resolve details only up to about 540 microns focused at the same distance. This is essentially a manifestation of the difference in magnifications (or angular resolution) of the lenses.
ZEMAX (also known as OpticStudio), a leading tool for design and analysis of optical systems, provides an in-built DDE server that enables access to ZEMAX’s features externally using any Windows application. The ability to access and control ZEMAX externally allows it to be used in many interesting and powerful ways, some of which has been documented in the “ZEMAX Extensions” chapter of the ZEMAX manual. An excellent toolbox called MZDDE, developed by Derek Griffith at CSIR, already exists for users of MATLAB. When I tried to look for an equivalent toolbox in Python, I couldn’t find one, so I decided to write one myself.
PyZDDE is a Python-based toolbox for communicating with ZEMAX using the DDE messaging protocol. It is similar to MZDDE and very much inspired by it. Currently PyZDDE is not as extensive as MZDDE as it is a work in progress. However, it has some distinguishing features — it can be used with regular Python scripts and also in an interactive environment such as an IPython shell, QtConsole or IPython notebook. The ability to interact with ZEMAX from an IPython notebook using PyZDDE can be a powerful tool for both teaching and documentation. Please visit the github repository for downloading and using the code. The github repository also contains an accompanying wiki page which describes briefly on how to use the PyZDDE toolbox.
Here I would like to briefly document the communication process between ZEMAX and Python using PyZDDE. But before that I would like to show you how simple it is to communicate with Zemax using PyZDDE using a “Hello world” example (it gets and prints the running Zemax version):
import pyzdde.zdde as pyz
link = pyz.createLink()
print(&amp;amp;quot;Hello Zemax version: &amp;amp;quot;, link.zGetVersion())
Using macros, written in the Zemax Programming Language (ZPL), is a powerful way to extend the functionality of ZEMAX. Zemax doesn’t provide a special editor for writing ZPL macros, and it recommends using text editors such as the NOTEPAD editor.
I love editors with syntax highlighting. Since there are no standard editors (with syntax highlighting) for writing ZPL codes, I decided to use Notepad++. It also allowed me to create a style-file which enabled syntax highlighting and support minimal code folding as shown below. The style-file contains the latest keyword, numeric function and string function definitions (as of April 2013). I have shared the style-files here in the post.
In order to download the files and see the quick instructions to use them, please continue reading.
Today (05/06/2014) I got to know about another project, created by Xinda Hu, for syntax highlighting and code folding of macro programs for both Zemax and Code V. It seems to be quite sophisticated and uses a modified form of Solarized theme. It also provides auto-complete and function calltips in the editor, which I believe can be of great help while coding. He has uploaded the required files at his GibHub page here (Zemax) and here (Code V). He has also created a GIF animation to demo the capability of his highlighter project, which can be found here. I highly recommend using his project for ZPL syntax highlighting.
All PhD students in our department (EE), in the Lyle school of engineering (SMU), are required to give a 15-min lunch-time talk in front of fellow PhD students and professors at least once every semester. This short-time talk/presentation, called the “Brown Bag Talk,” is meant to help PhD students in many ways, such as improving presentation skills, networking skills, etc. In addition, it encourages interaction among students, who are usually working in their own problems, to know about others’ work. However, the talk is not necessarily limited to one’s own PhD problem.
So, when it was my turn to lecture, I decided to talk about the use of open-source tools in research. In particular, I wanted to concentrate on two open-source tools that I regularly use in my everyday work — Python and Zotero. Zotero and its other free and open-source alternative, Mendeley, are very powerful and easy to use citation management system with lots of other useful capabilities. I also demonstrated few of the useful features of Zotero and some of the interesting language capabilities of Python during the presentation.
Here are the slides (images) from the presentation. The presentation contain animations, so I have provided a link to download the slides (powerpoint) from slideboom at the end of this post. Please feel free to use it as it may seem fit.
